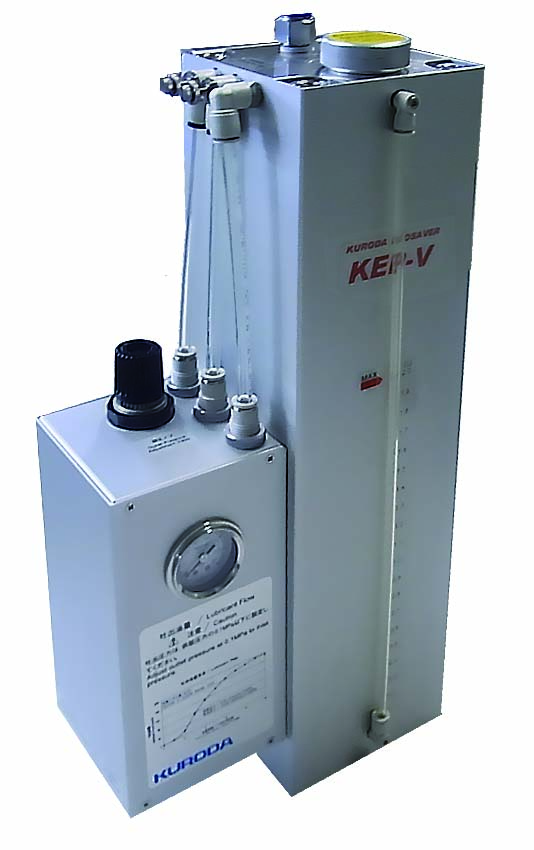

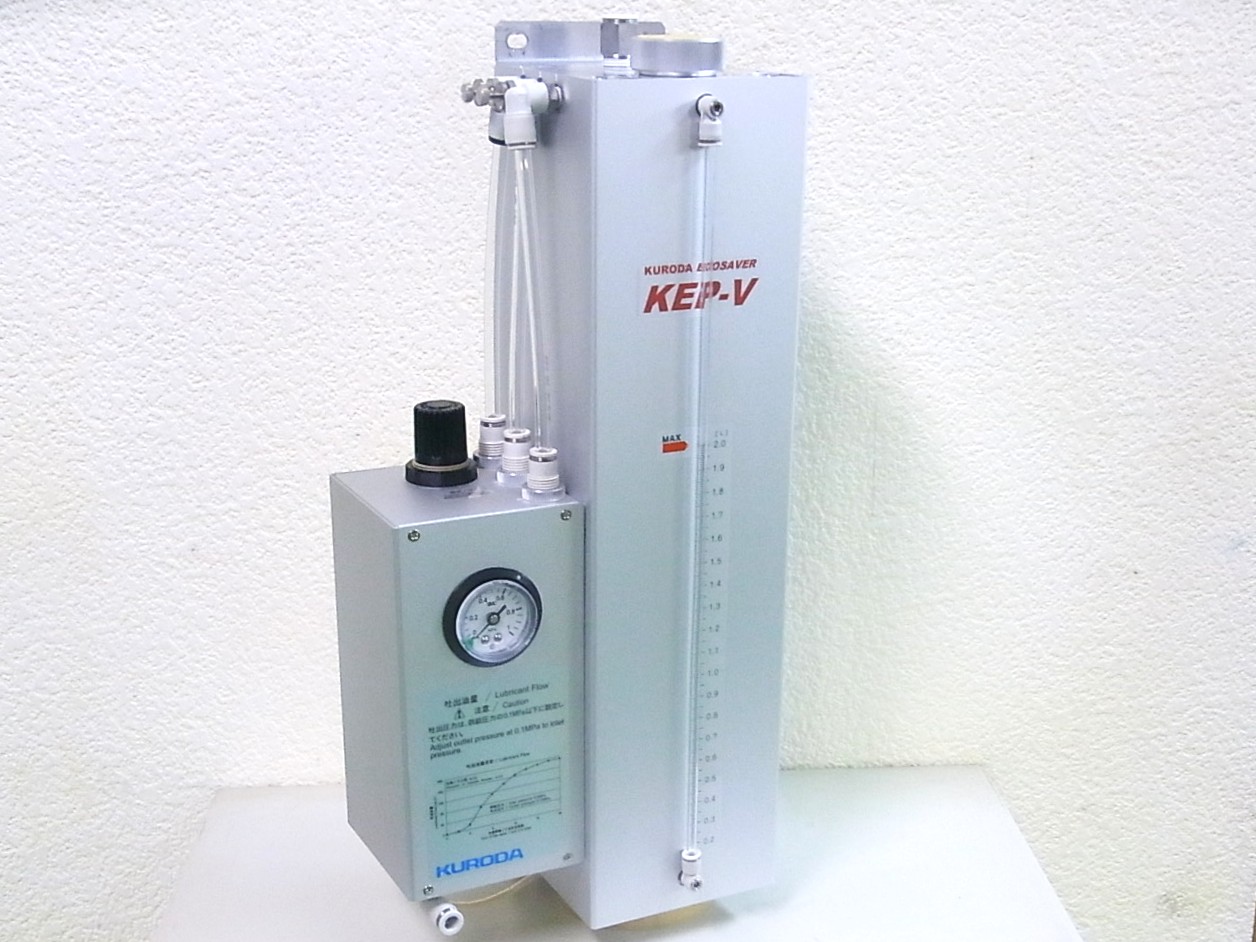

ECOSAVER / KEP-V (Large Volume Type)
Features consolidated specifically for hang-on type nozzle.
Allows for implementation of eco-friendly semi-dry processing at low cost.
Semi-dry machining is an eco-friendly cutting technology that reduces cutting oil consumption,
lowers costs for oiling equipment and waste oil processing, extends tool life, and maintains machining accuracy.
The "Eco-Saver" minimal quantity lubrication system for semi-dry machining atomizes oil using compressed air,
generating mist within its container. This microscopic mist (microfog) is then supplied with air out of the container.
The "Eco-Saver KEP-V" features a large discharge oil quantity of up to 200ml/h,
making it suitable for component machining and other applications that require a wetter oil consistency than conventional methods.
MENU
- Built-in 2-level solenoid valve to control the discharge oil quantity
- Constant discharge pressure is achieved through pressure control that adapts to varying discharge nozzle diameters
- Large discharge volume specification, capable of discharging up to 200 ml/h *1
- Support for water soluble cutting fluid *2
- Self-priming nozzle with a proven track record
- Features a built-in oil level switch to provide advance notice of oil refilling
*1 Example when Unicut Jinen MQL is used.
The quantity of oil discharged also varies depending on the mist discharge port diameter and discharge pressure, etc.
*2 We do not handle water-soluble cutting fluids.
When using water-soluble cutting fluid, please consult the fluid manufacturer regarding its suitability for mist application.
(When in use, always follow the instructions in the Safety Data Sheet 〔SDS〕 and ensure the safety of the surrounding work environment,
including proper ventilation.)
| Working pressure range | 0.2~0.7MPa |
|---|---|
| Discharge pressure | 0.1~0.6MPa (with constant pressure control mechanism) |
| Outlet air flow rate (Connection diameter) |
30~450ml/N (Supply port φ8 / Discharge port φ12) |
| Oil quantity control | 2-level adjustment by built-in solenoid valve |
| Oil quantity adjustment | By manual throttle valve (with locking mechanism) |
| Discharge oil quantity |
0~200ml/h *1 *1 Example when using Unicut Jinen MQL |
| Cutting oil (Recommended) |
Eco-friendly cutting oil for semi-dry machining Unicut Jinen MQL (ENEOS)/ CareCut ES4 (BP JAPAN Co) |
| Oil tank capacity | 2,000ml |
| Operating temperature range | 5~50℃ |
| Built-in solenoid valve | DC24V 0.6W x 2 |
| External dimensions | W218 x D148 x H487 [mm] |
| Mass | Approx. 9.0kg (when oil tank capacity is maximum) |
| Mounting method | External mounting recommended |
