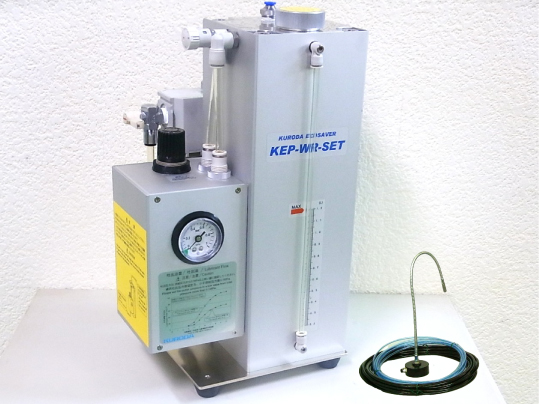

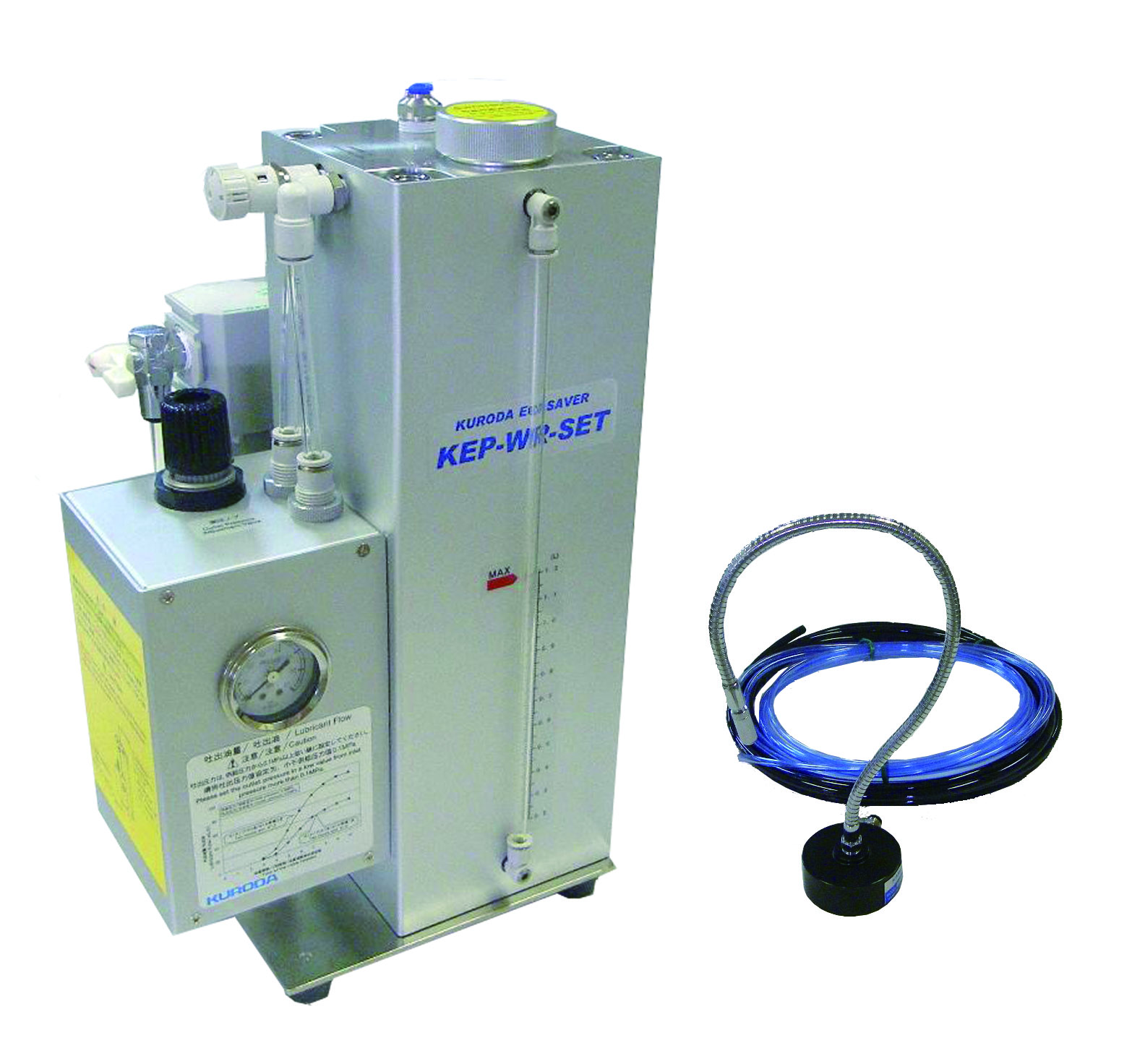

ECOSAVER / KEP-WR-SET (Hang-on Type)
Features consolidated specifically for hang-on type nozzle.
Allows for implementation of eco-friendly semi-dry processing at low cost.
Semi-dry machining is an eco-friendly cutting technology.
It not only reduces cutting oil consumption and the costs associated with oiling equipment disposal and waste oil processing,
but also extends cutting tool life and maintains machining accuracy.
The ECOSAVER minimal quantity lubrication system atomizes oil using compressed air to generate mist within its container.
This microscopic oil mist (microfog) is then precisely supplied with air from the container.
The "Eco-Saver KEP-WR-SET" is ideal for applications where cutting fluid is supplied via an external nozzle.
This includes various machines such as lathes, sawing machines, hobbing machines, and machining centers.
MENU
- Oil quantity can be easily adjusted by using a dial
- Different nozzle diameters can be supported by controlling the constant pressure
- Constructed for ease of use
- Enables semi-dry machining at a low cost
- This is a freestanding unit that can be easily installed near the equipment, ready for immediate use upon air piping connection (A KEP-WR type [main unit only], which can be mounted or integrated into equipment, is also available.)
| Working pressure range | 0.2~0.7MPa |
|---|---|
| Discharge pressure | 0.1~0.6MPa |
| Outlet air flow rate (Connection diameter) |
30~260ml/N (Supply port φ8 / Discharge port φ6) |
| Oil quantity control / Oil quantity adjustment |
By manual throttle valve (with locking mechanism) |
| Discharge oil quantity |
0~90ml/h *1 *1 It is based on the use of two discharge nozzles with a diameter of φ1.6. |
| Spray droplet diameter | Approx. 3μm |
| Cutting oil (Recommended) |
Eco-friendly cutting oil for semi-dry machining Unicut Jinen MQL (ENEOS)/ CareCut ES4 (BP JAPAN Co) |
| Oil tank capacity | 1,200ml |
| Operating temperature range | 5~50℃ |
| External dimensions | W218 x D214ｘH373 [mm] |
| Mass | Approx. 8.5kg (when oil tank capacity is maximum) |
